SY-MGI-500W

Specific design for 18V/36 cells PV module; but also suitable for 24V battery and small wind turbine system with built-in AC-DC charging controller which’s output voltage is 24V.
  1. Detailed information
  2. Detail display
  3. Warranty

 Features

1.         Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable

            performance.

2.         Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

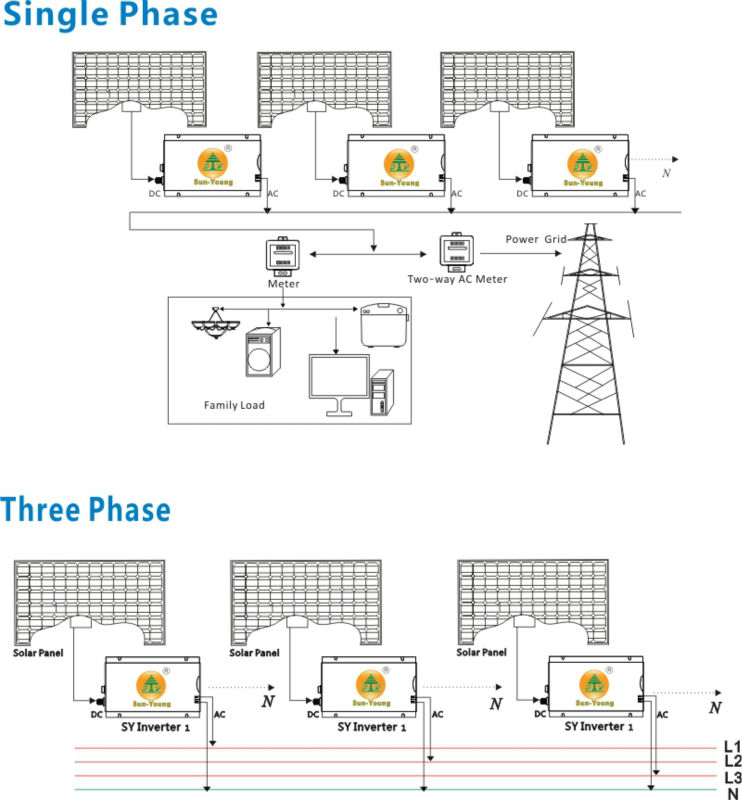

3.         Parallel type design for DC input and modularization design for inverter, small volume, distributed installation,

            easy for system configuration, flexible for combination, strong expansibility of system.

4.         Adopting high-frequency isolation transformer type, high efficiency, and high security.

5.         Perfect electrical protection function.

6.         Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.

7.         Getting electronic circuit design, appearance design and other core technology patents.

8.         Compatible with 36 cells solar panels.

grid tie inverter









 Data Parameter

Rated Power

500W

Compatible with Solar Panels

36 cells/18V, Vmp: 18-21V; Voc: 20-24V

DC Input Range

10.5-28V

MPPT Voltage

15-23VDC

DC MAX. Current

25A

AC Output

120VAC(90-140VAC)  or  230VAC(190-260VAC)

Frequency

50Hz/60Hz(Auto control)

Power Factor

>97.5%

THD

<5%

Phase Shift

<2%

Efficiency

120VAC(90-140VAC)

Peak Efficiency

89%

Stable Efficiency

88%

Protection

Islanding; Short-circuit; Low Voltage; Over Voltage; Over Temperature Protection

Working Temperature

-25 to 65 degrees celsius

Working Humidity

0%~90%RH non-condensing

Waterproof

Indoor design

Show

Luminous Diode(LED)

Cooling

Fan

Stand-by Power

<1W

Mechanical Size

21*16.5*5.3CM

Inner Box

31*21*11.5CM

Carton

42*31.5*35.5CM, 6pcs/CTN, 8/11KGS





 Product Details

MGI-DC--

1000W GRID TIE INVERTER-AC

MGIN grid tie inverter 4




 SY-MGI 300w solar wind grid tie inverter for solar power system





 Order Notice

Shiping

1. All orders are shipped from the China. Any customs or import duties are charged once the parcel reaches its

destination country. These charges must be paid by the recipient of the parcel. Unfortunately we have no control

over these charges and cannot predict what they may be. Customs policies vary widely from country to country;

you may want to contact your local customs office for further information.

2. We gurantee to ship goods out within 3-4 days after payment confirmation except holiday.

3. It is free shipping item, except mutual disscusion in advance payment, we will choose the express company to

handle the delivery.

4. If you didnt receive the item after 45 days, please feel free to contact us. We will make all our effort to resolve

the problem.

5. All orders are shipped from China. Any custom or import duties are charged once the goods reaches its destination country.

These charges must be paid by the recipient of the goods. Unfortunately we have no control over these charges and cannot

predict what they may be. Customs policies vary widely from country to country, you may want to contact your local customs

office for further information. So please note that we are not responsible for delays causedby the customs,Import duties,taxes or

other customscharges.



Warranty:

1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description,

We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all

your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
