SY-WMVC-200W 24V

● 20-40Vdc input, compatible with Mono or Poly solar panel which Voc is 34-38V and Vmp is 26-30V ● 220V/230V output, suitable for utility power grid which voltage is 190-260Vac. ● Please be kind to note that this item is grid-connected type inverter.
  1. Detailed information
  2. Detail display
  3. Warranty

Tips for Order

1. Quick Introduce of Micro Inverter 200W

    A. 20-40Vdc input, compatible with Mono or Poly solar panel which Voc is 34-38V and Vmp is 26-30V

    B. 220V/230V output, suitable for utility power grid which voltage is 190-260Vac.

    C. Please be kind to note that this item is grid-connected type inverter

2. Power Cable Infomation

    We have EU(European), AU(Austrilia), USA, UK standard plug power cable.

    Pls confirm your plug type at the same time to place order and pls remark what kind of plug do you need.

3. Package Accessories:

    Each inner box: One inverter, one power cable, one English User Manual(including warranty card).



Delivery Note

1. All orders are shipped from the China. Any customs or import duties are charged once the parcel reaches its destination country. These charges must be paid by the recipient of the parcel. Unfortunately we have no control over these charges and cannot predict what they may be. Customs policies vary widely from country to country; you may want to contact your local customs office for further information.

Please be kind to remark the custom value statement on the airwaybill when you placing order to us.

2. It is Freeshipping item. Without any remark or pre-confirmation with us, we has the final decision of the choice of delivery methods including but not limited express, airmail, freight special line, etc.

Please be kind to check with us first before you placing order and you want to go for specify delivery mothod.

3. It is Freeshipping item. But Freeshipping is only cover the normal place and excluding the remote place. Once we check that the delivery address is remote place we will reconfirm with the extra delivery cost.

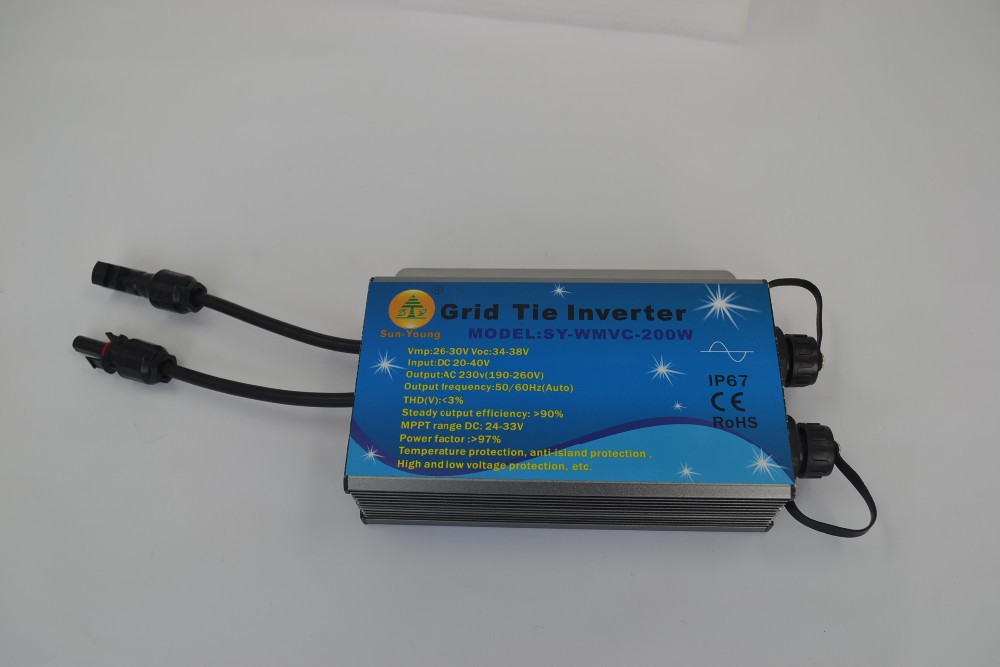

DSC_0685

DSC_0703

DSC_0709

Model

200W

Input

Solar Panel Compatible with

60 cells, Voc: 34-38, Vmp: 26-30V

Solar Panel Rated Power Recommended

220-240W

Mppt Tracking Voltage Range

24-33V

Mppt Algorithm

CVT+PO

DC Input Voltage Range

20-40Vdc

Output

Efficiency

In vicinity of 91%

AC Voltage

220V/230V(190-260Vac)

Wave Form

Pure Sine Wave

Max. Output Power Factor

99% at Mppt Voltage

Frequency

45-53Hz, 55-63Hz(Auto Switch)

Protection

Over Temperature

>65 Celsius degree

Low Voltage Shut Down

< 23V

Over Voltage Shut Down

> 46V

Reverse Voltage Protection

Reverse Connection Circuit

Short Circuit

Fuse

Islanding Protection

Detect Islanding within 0.02S, shut down within 0.5S

Environment

Working Temperature

-25 to 60 Celsius degree

Working Humidity

0% - 90% Waterproof Design

Other

Communication

Wireless communication(Wifi)

Waterproof

IP65

Total Harmonic Distortion

THDIAC(V) < 3%(at MPPT voltage)

Phase Shift Rate

< 1%

Standby Power

<2W

Boot to Full Power Consuming

< 1 munities

Cooling Ways

Natural Convection

Certificate

CE



undefined



undefined





Warranty

We provide 15 years warranty( 1 year full warranty and 14 years free repairment or replacement excluding freight fee and tax cost etc).



For more information about other series of inverter or more details for this item, pls contact our service via below contact,

Email: cindy (at) sycorp.com.cn

Skype: cindy61799
